Discover Service Endpoints Using Classic BIG-IP

Objective

This document provides instructions on how to configure Service Discovery of type Classic BIG-IP. Service discovery enables you to discover endpoints available on a given platform. This enables you to use F5 Distributed Cloud as the DMZ for public-facing applications, facilitates easy app migrations across diverse infrastructures, and enhances the visibility of APIs being used for these apps, empowering BIG-IP users to optimize their multi-cloud strategy effectively.

This service discovery feature enables the F5 Distributed Cloud platform to discover virtual servers configured on your classic BIG-IP devices and provides quick actions to enable various Distributed Cloud Services for the discovered applications.

---

Prerequisites

• A valid F5 Distributed Cloud Account is required. If you do not have an account, see Getting Started with Console.

• A Secure Mesh Site deployed with reachability to the BIG-IP instances. Refer to Infrastructure Requirements section for more details.

• BIG-IP admin credentials (required) and certificate (optional).

---

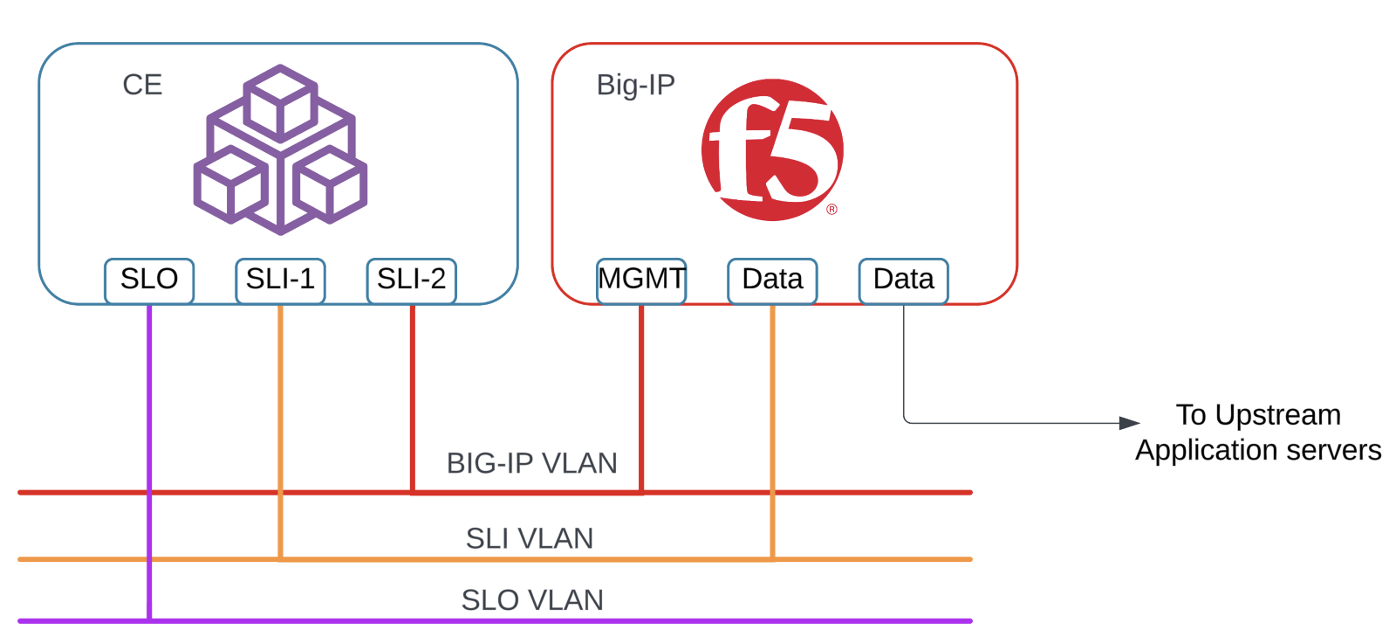

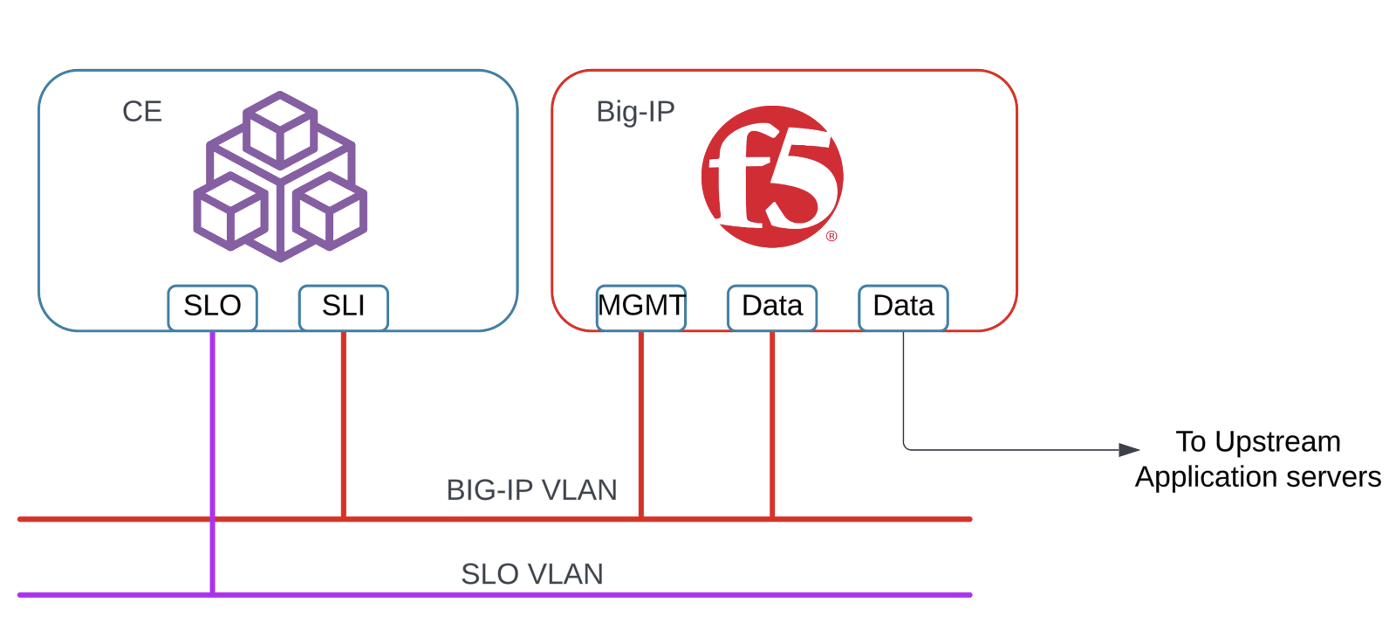

Infrastructure Requirements

The management and data interfaces of BIG-IP devices must be routable from the Site Local Inside (SLI) interfaces of the CE. F5 recommends you deploy the CE with two SLI interfaces: one to reach the BIG-IP Management interface and the other to reach the data interface. This keeps the config and data path separate and the data path performance is not affected by config traffic.

The feature also works with one SLI interface on the CE with reachability to both BIG-IP interfaces.

Note: The same service discovery configuration can discover from multiple BIG-IP clusters that are reachable from the CE Site's SLI interface.

---

Configuration Sequence

Discovering BIG-IP applications and enabling Distributed Cloud services for them requires performing the following actions:

• Configure service discovery:

  • Add BIG-IP instances or HA clusters.

  • Configure Virtual Server Filters to selectively discover required applications.

  • Configure Namespace Mapping to select BIG-IP partitions to discover from.

• Verify the discovered applications.

• Create an HTTP load balancer to advertise the app, or enable Visibility to make it available in the Web App & API Protection workspace where you can enable and monitor API discovery.

Configuring Discovery for Shared vs Dedicated BIG-IP Resources

The service discovery tool discovers the BIG-IP apps into Distributed Cloud App Connect Namespaces. The feature provides an option to discover apps from different BIG-IP partitions into single or multiple Distributed Cloud App Connect Namespaces.

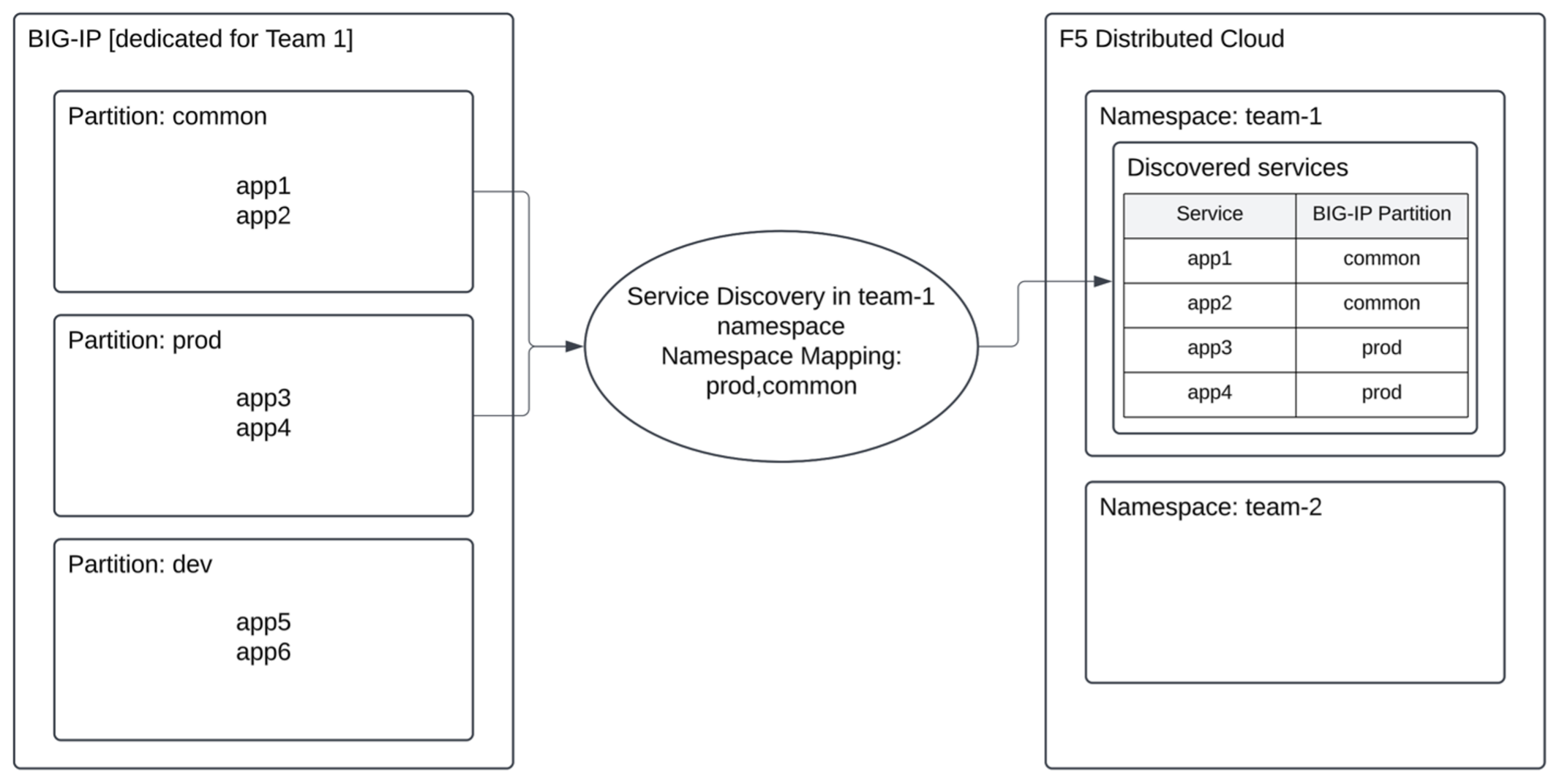

If the requirement is to discover all BIG-IP Apps into the same App Connect Namespace, for example: when the BIG-IP is a dedicated resource and all partitions on it are owned by a single team, the Service Discovery object can be configured in the App Connect namespace to which the team has access.

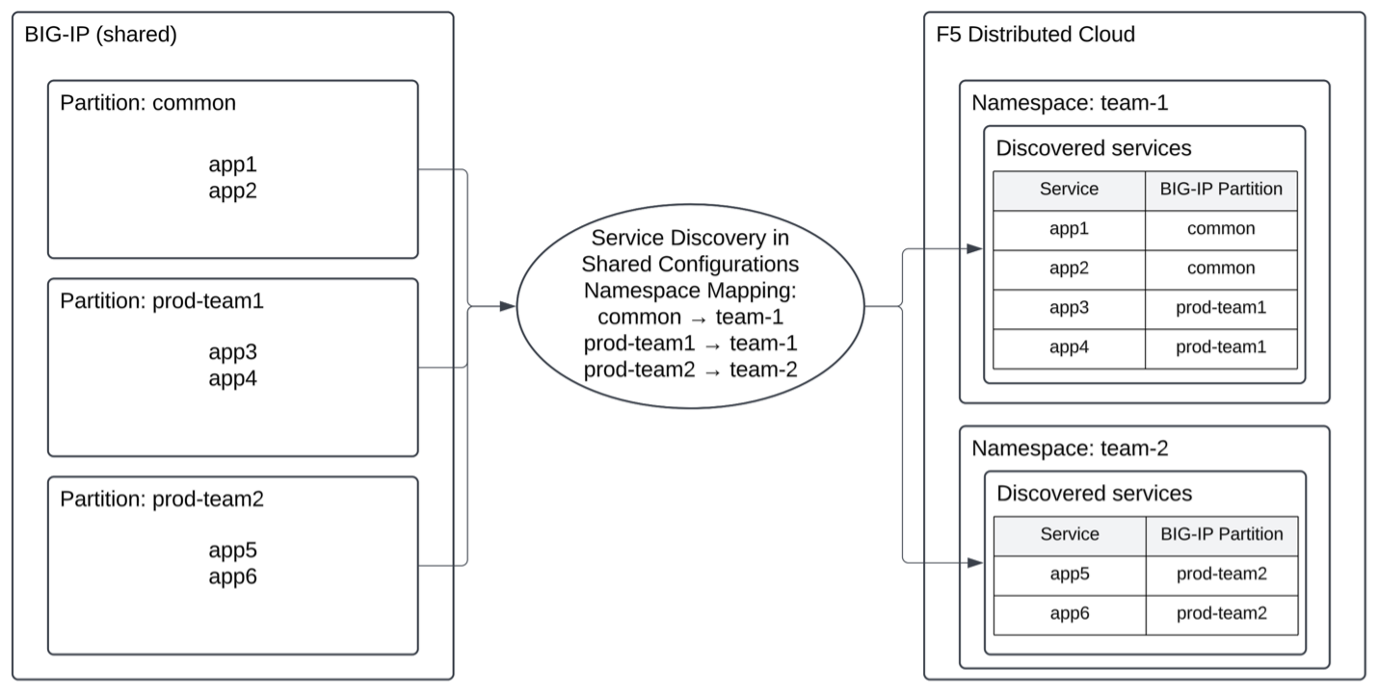

If the requirement is to discover apps from certain BIG-IP partitions to corresponding App Connect Namespace (for example: when different BIG-IP partitions are owned by different teams), the Service Discovery object must be configured in the Shared Configurations workspace. The namespace mapping configuration can be used to map the required BIG-IP partitions to the corresponding App Connect Namespace. The applications from the BIG-IP partitions will be discovered only to the mapped App Connect Namespace, maintaining the management isolation.

Configure Service Discovery for Classic BIG-IP

The steps to configure Classic BIG-IP service discovery are the same for the App namespace and Shared Configuration, except for the namespace mapping step. Follow the steps below to configure the Service Discovery object in the App Connect namespace:

Step 1: Create a new service discovery object.

• Open F5 Distributed Cloud Console.

• Select Multi-Cloud App Connect > Manage > Service Discoveries.

• In BIG-IP tab, select Add Service Discovery button.

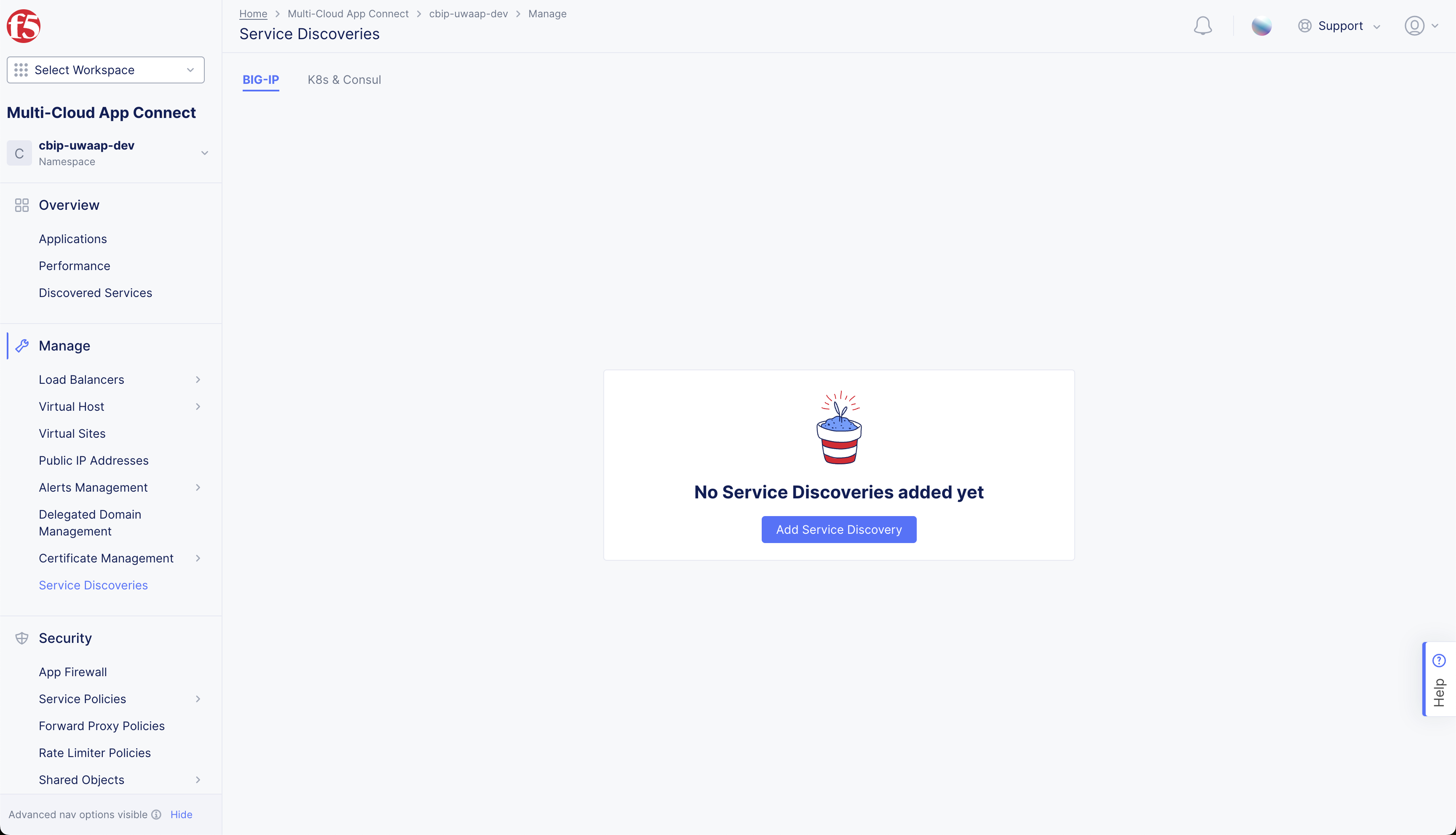

Figure: Add Service Discovery

Step 2: Enter the metadata.

• Enter Name.

• Optionally, enter Labels and Description.

Step 3: Select where the discovery is applicable.

• In Virtual-Site or Site or Network drop-down menu, select Site.

• From the Reference drop-down menu, select the CE Site deployed with reachability to the BIG-IP.

• From the Network type drop-down menu, select Site Local Inside Network.

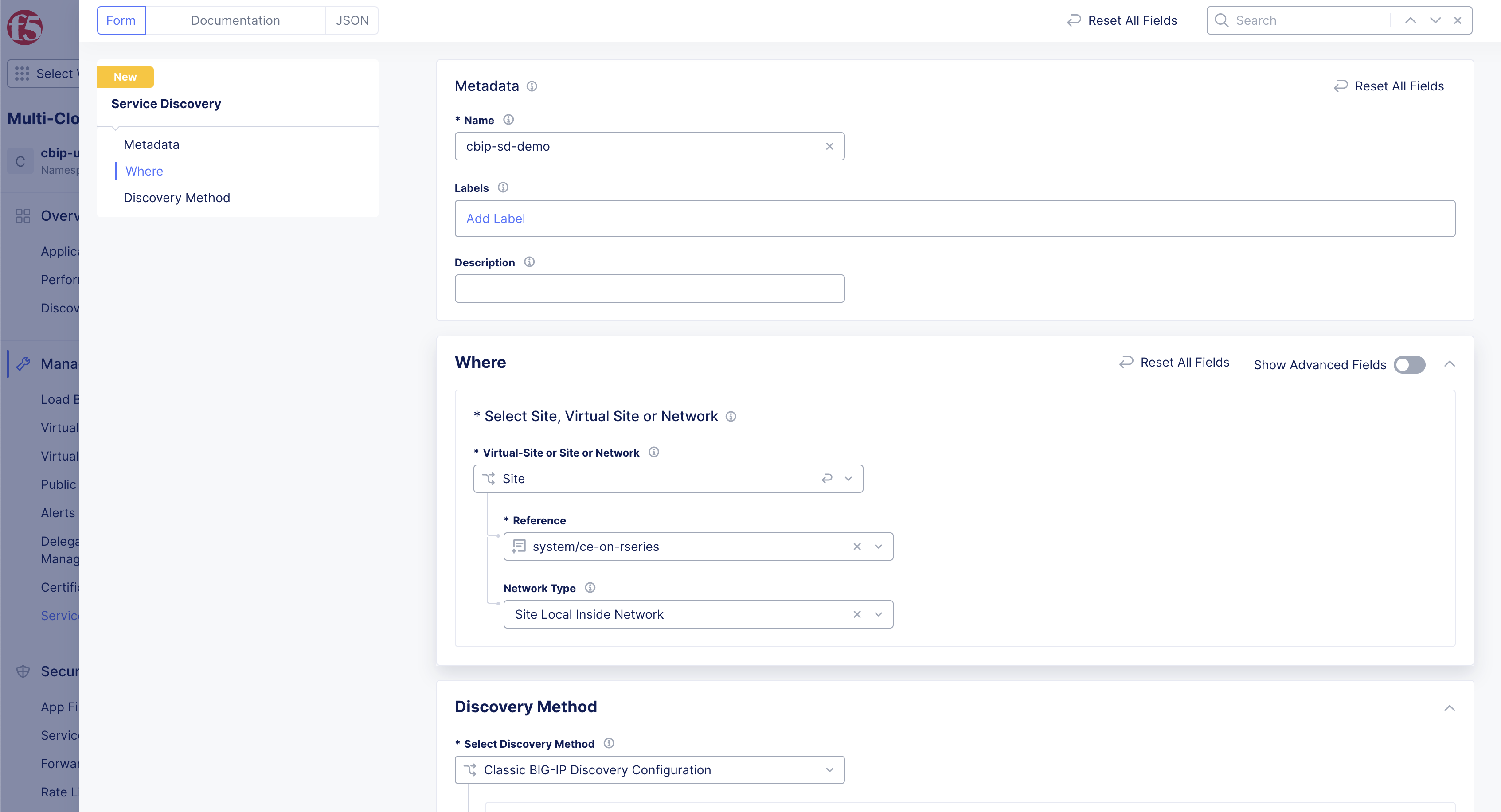

Figure: Site Local Inside Network

Step 4: Select the discovery method.

In the Discovery Method drop-down menu, select Classic BIG-IP Discovery Configuration.

Step 5: Add BIG-IP clusters.

• Under Classic BIG-IP Clusters, click + Add Item button to add one cluster at a time.

Note: If you do not have a cluster and have an individual BIG-IP device, you can add it as a cluster of one device.

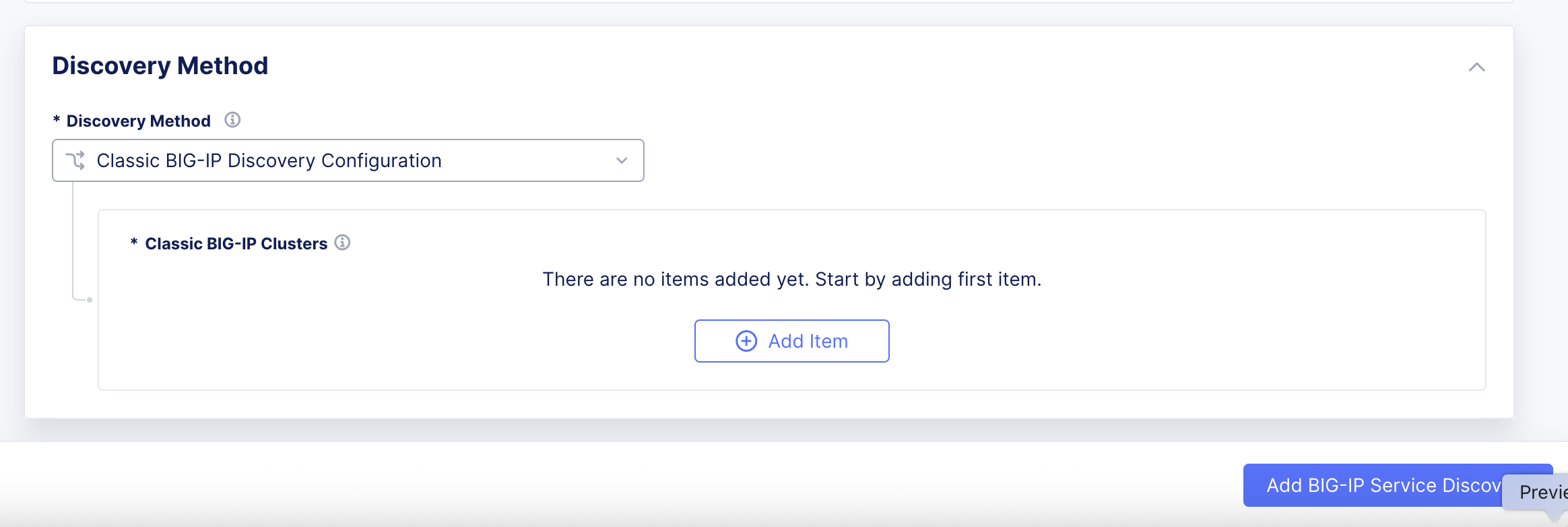

Figure: Add BIG-IP Clusters

• Enter the name and description of the BIG-IP cluster.

Step 6: Add BIG-IP device.

• In Classic BIG-IP Clusters, select + Add Item button.

• Enter Name and Description as needed. s

• Provide the device's Management IP.

• Select + Add Item button to add additional Management IP's.

• Select Management Port.

Note: 443 is Management Port default value. Port numbers must be in the range of 1-65535.

• Edit Management Port as needed, or reset to default value with circle arrow icon.

• Provide the device's Admin Credentials.

• Enter Admin Username in box

• In Admin Password box select Configure link.

  • Select Secret Type > Action > Policy Type > Secret to Blindfold > Apply button.

• Under Root CA Certificate, select Skip Verification if no certificate is configured on BIG-IP for authentication, or select Root CA Certificate and add the required certificate.

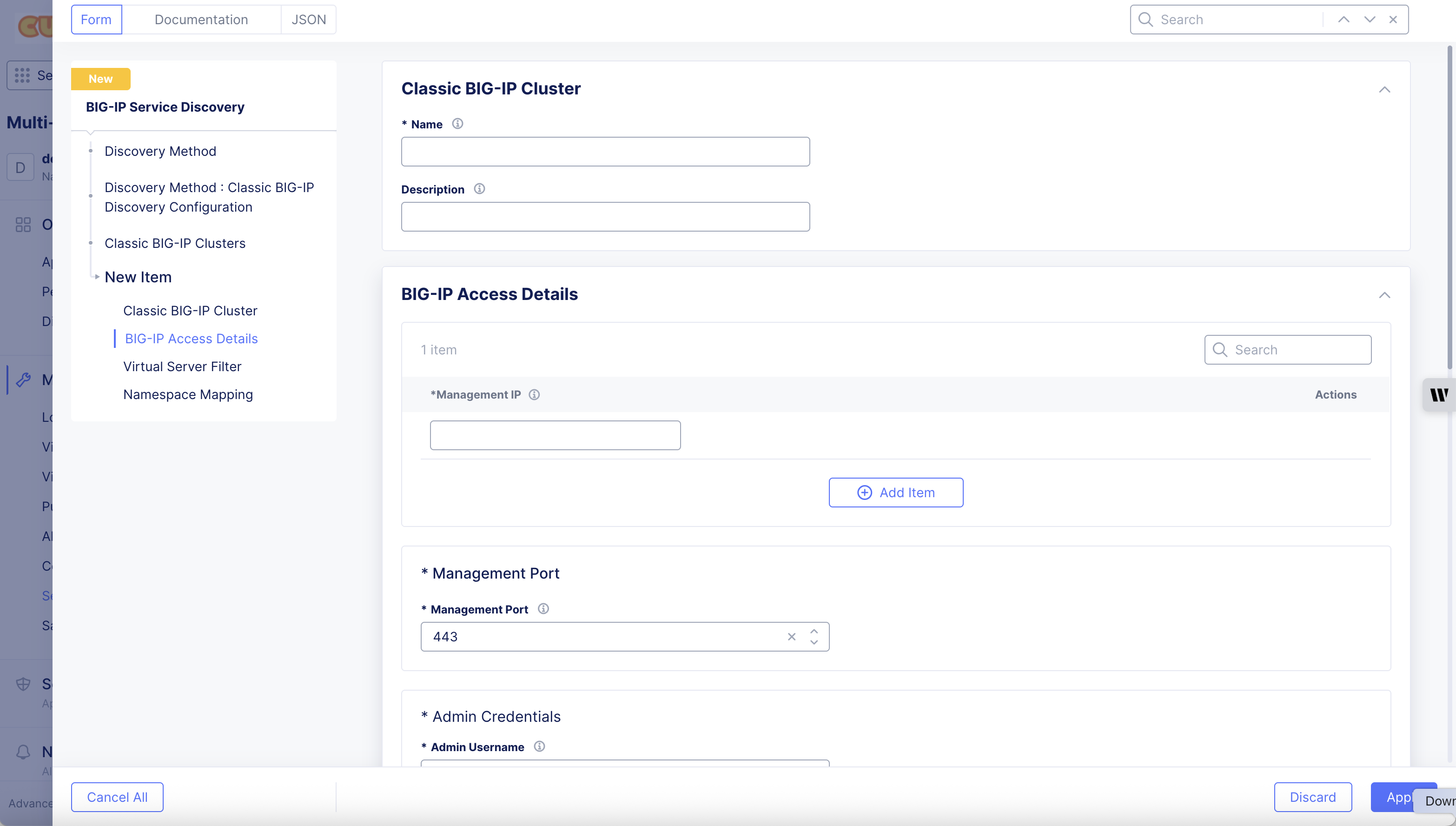

Figure: Add BIG-IP Access Details

Step 7: Optionally, configure virtual server filter.

The virtual server filter can be optionally used to select only the required BIG-IP virtual servers that need to be onboarded to Distributed Cloud App Connect and exclude others.

Virtual servers that are disabled on BIG-IP are not discovered by default.

• Check the Discover Disabled Virtual Servers checkbox to allow discovering these servers if required.

• In Regex To Match Virtual Server Name box, provide a regex string to match the required virtual server names. For example, if non-production virtual servers are named with the prefix “dev-”, you can enter “^dev-*” as the regex.

• In Regex To Match Virtual Server Description box, provide a regex string to match the required virtual server description.

Note: You can add labels in the virtual server description on BIG-IP and use this to discover these virtual servers.

• In Port Ranges box, enter comma-separated ports/port ranges to match the required virtual server (for example: 80,8080,5000-5050).

Figure: Configure Virtual Server Filter

Note:

• If any field is left blank, it is treated as select any.

• The virtual server will be discovered if it matches any of the configured criteria (logical OR between the configured criteria).

Step 8: Configure namespace mapping.

• Under the Namespace Mapping Choice drop-down menu, select one of the following:

  • Automatic: if you want to discover virtual servers from all BIG-IP partitions.

  • Custom: if you want to select the BIG-IP partitions to discover from.

    • Click Add Item button to add regex to match the partition name.

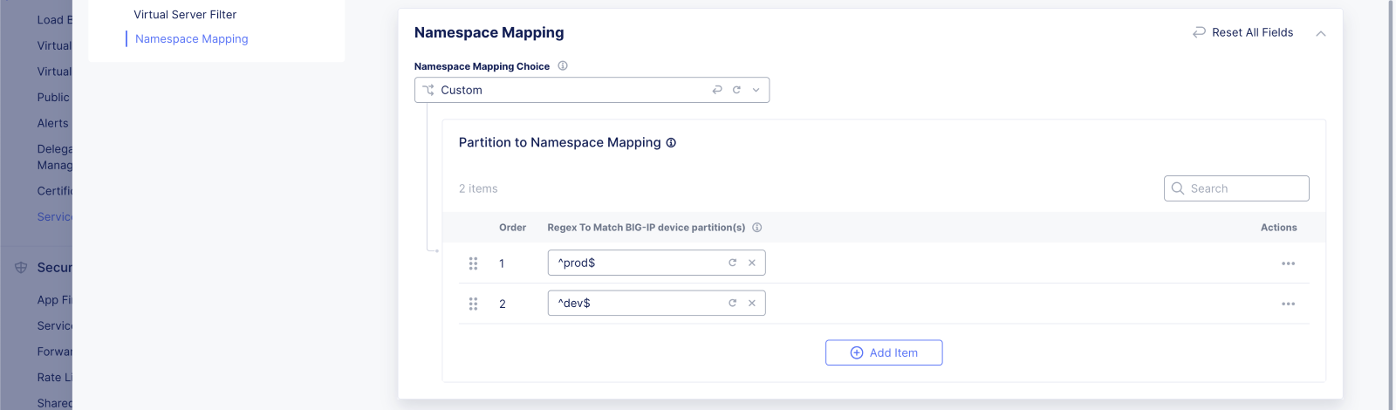

Figure: Namespace Mapping

Note: If you are configuring the Service Discovery object in the Shared Configurations workspace, you must also select the App Connect Namespace to which the discovered virtual servers will be deposited.

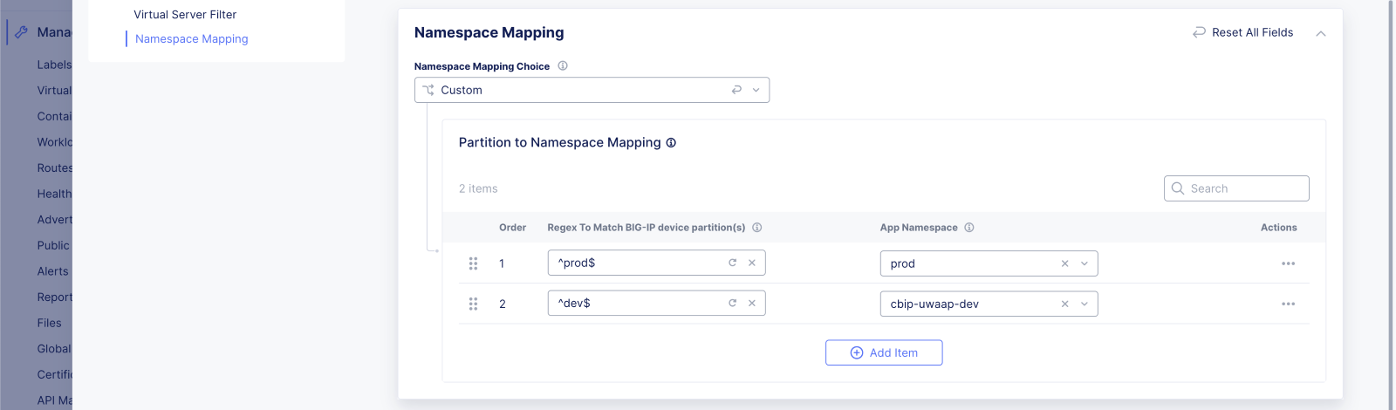

Figure: Namespace Mapping Virtual Server

Step 9: Save the instance configuration.

• Click Apply to save the BIG-IP instance.

• Go back to Step 6 to add more BIG-IP instances to the cluster.

Step 10: Save the cluster configuration.

• Click Apply to save the BIG-IP cluster.

• Go back to Step 5 to add more BIG-IP clusters to discover from.

Step 11: Save the service discovery configuration.

Select Add BIG-IP Service Discovery button to save the configuration.

Note: Editing the cBIP management IP in an existing Service Discovery object is not supported as it may cause an incomplete cleanup of related configurations. If you need to update the members of the management IP or HA cluster, you must create a new Service Discovery object with the updated information, validate it, and then delete the old one after successful validation.

---

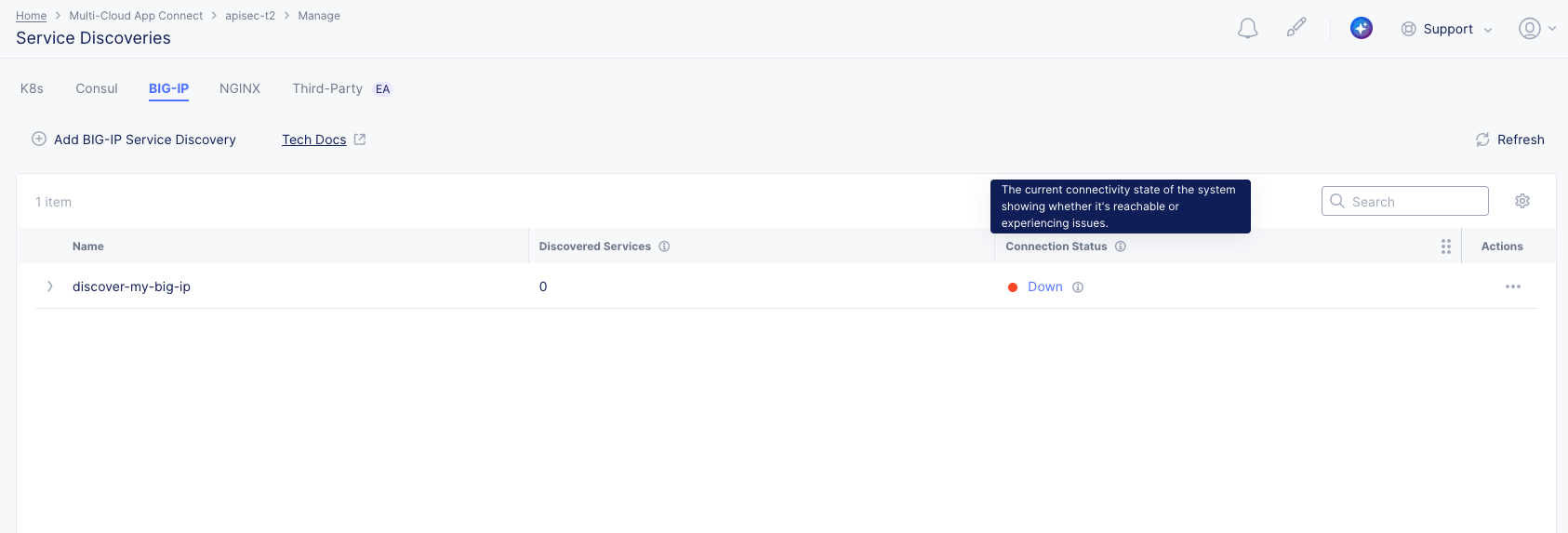

Monitor BIG-IP Service Discovery Connection Status

After creating a BIG-IP Service Discovery object, you can monitor its Connection Status before proceeding to Discover Services. The Connection Status displays the real-time connectivity and operational state between the Customer Edge (CE), F5 Distributed Cloud, and BIG-IP (including HA clusters).
The Connection Status only applies to the BIG-IP Service Discovery and indicates whether the system is able to successfully connect to BIG-IP devices, identify the active node, and fetch configuration data.

The Connection Status column displays one of the following states:

• Up (Green): All BIG-IP clusters are accessible, and the configuration is successfully fetched from the active nodes.

• Retrying (Yellow): The system is either applying or retrying the configuration. For example, during the initial setup, configuration updates, or failover handling.

• Down (Red): The configuration cannot be fetched due to connectivity, authentication, RPM installation, or active node availability issues.

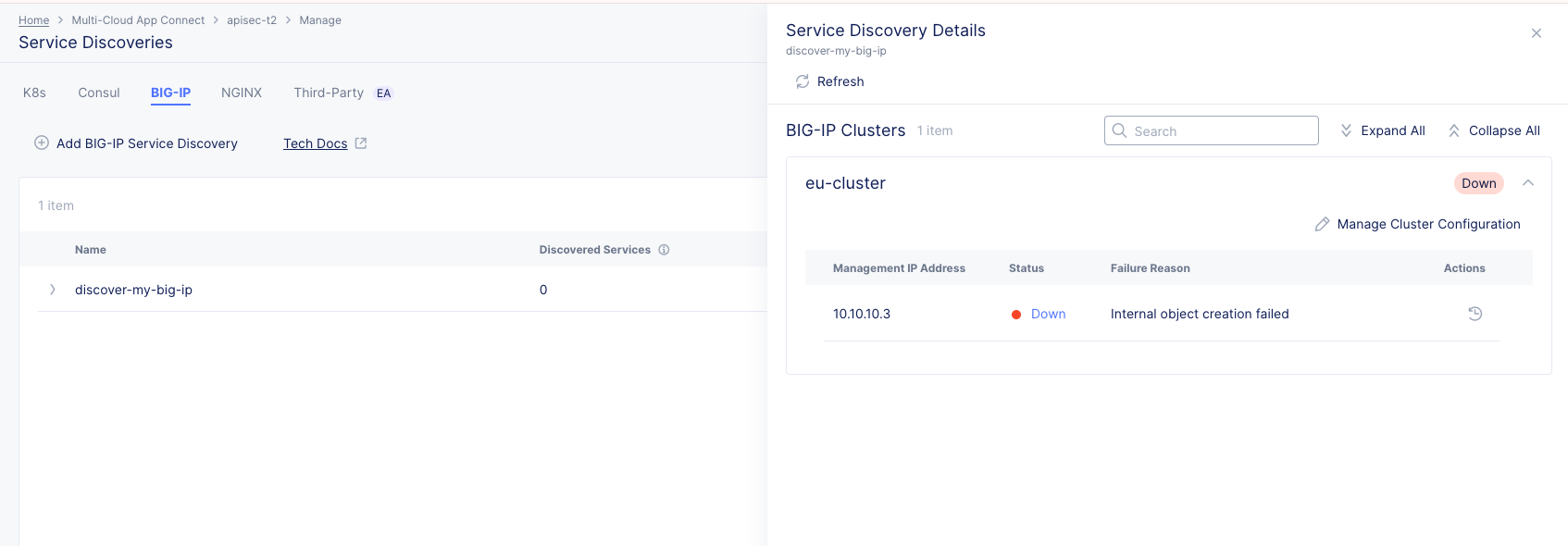

Click on the Connection Status to open a detailed view that displays the following information:

• Overall Service Discovery status
• Per-cluster status
• Per-instance (active/standby) status

This hierarchical view helps identify where the Service Discovery process is blocked before moving to Discover Services. The discovered applications only appear in the Discover Services view after the Connection Status moves to Up.

---

Verify the Discovered Applications

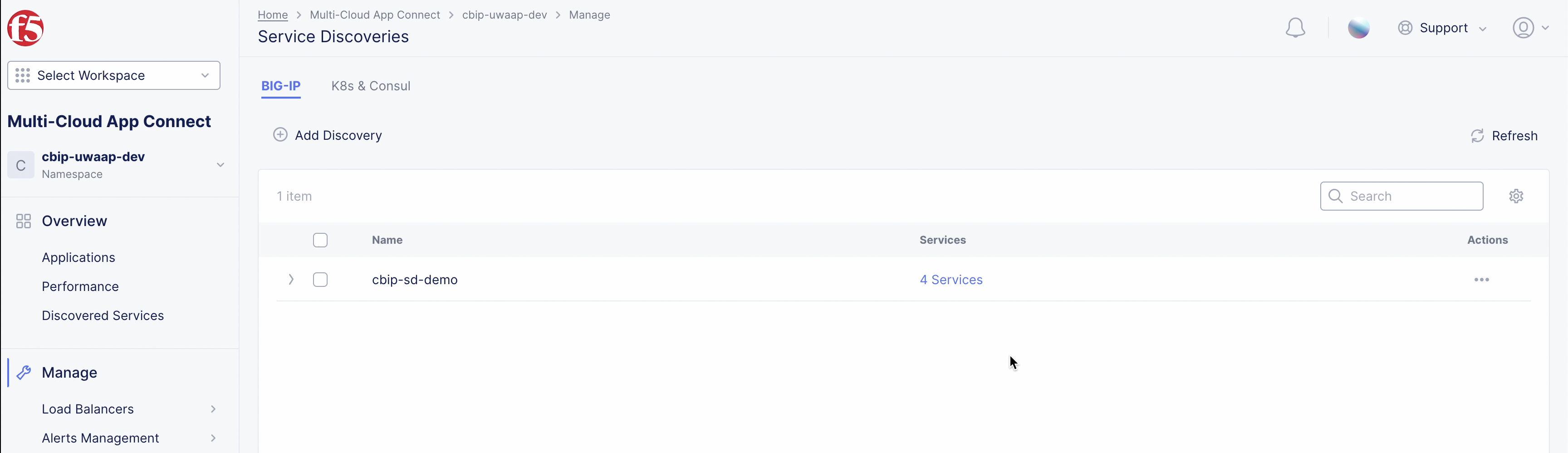

Once the service discovery configuration is saved, the number of discovered BIG-IP virtual servers is shown in the Services column next to each discovery object.

Note: This is not shown when the service discovery is configured in the Shared Configuration workspace. To view this, navigate to Multi Cloud App Connect > Manage > Service Discoveries on one of the namespaces to which the partitions are mapped.

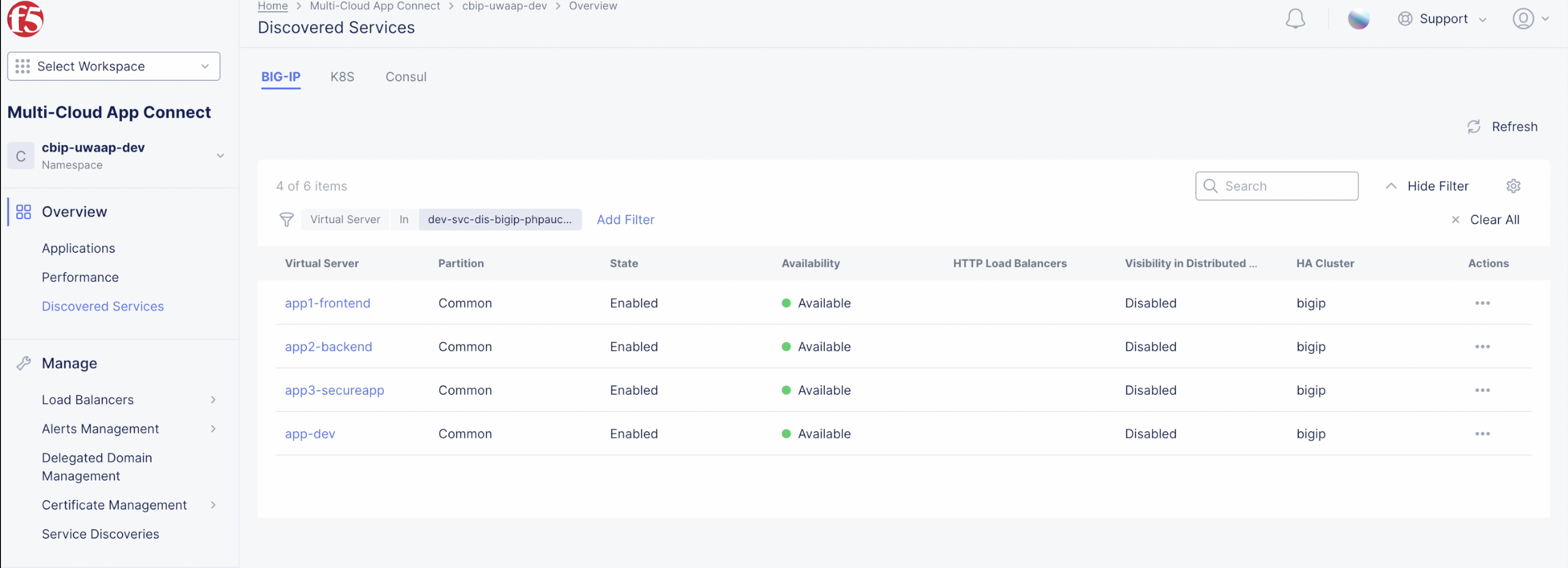

You can click on the number to navigate to the Multi Cloud App Connect > Discovered Services dashboard to view the list of discovered applications for that Service Discovery object.

---

Advertise the Discovered Applications

The Console provides a quick wizard to easily advertise the discovered application to the Internet or other sites using the F5 Distributed Cloud Multi-Cloud App Connect workspace by creating an HTTP load balancer.

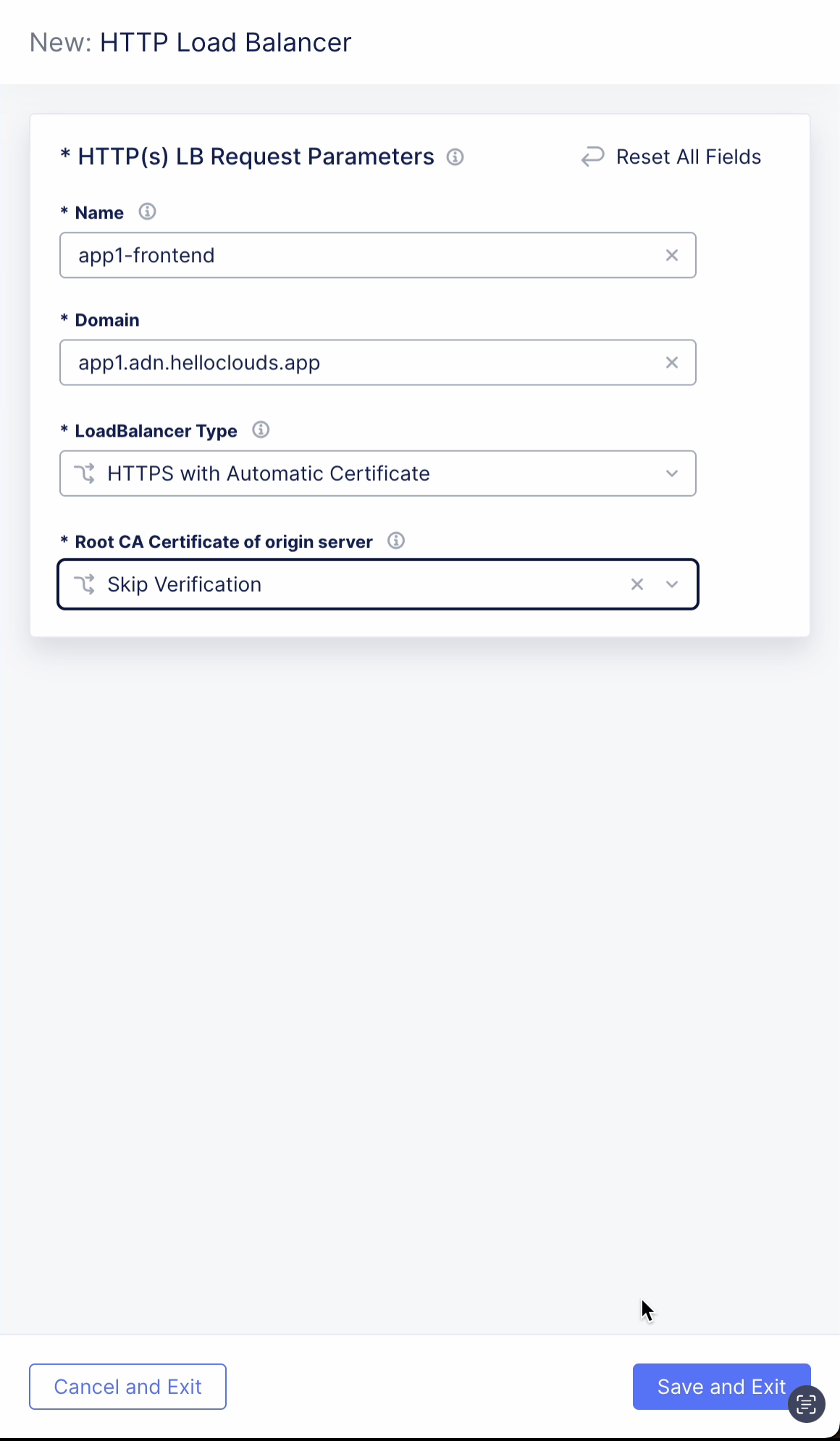

The below example shows the steps to advertise the discovered HTTP application to the Internet:

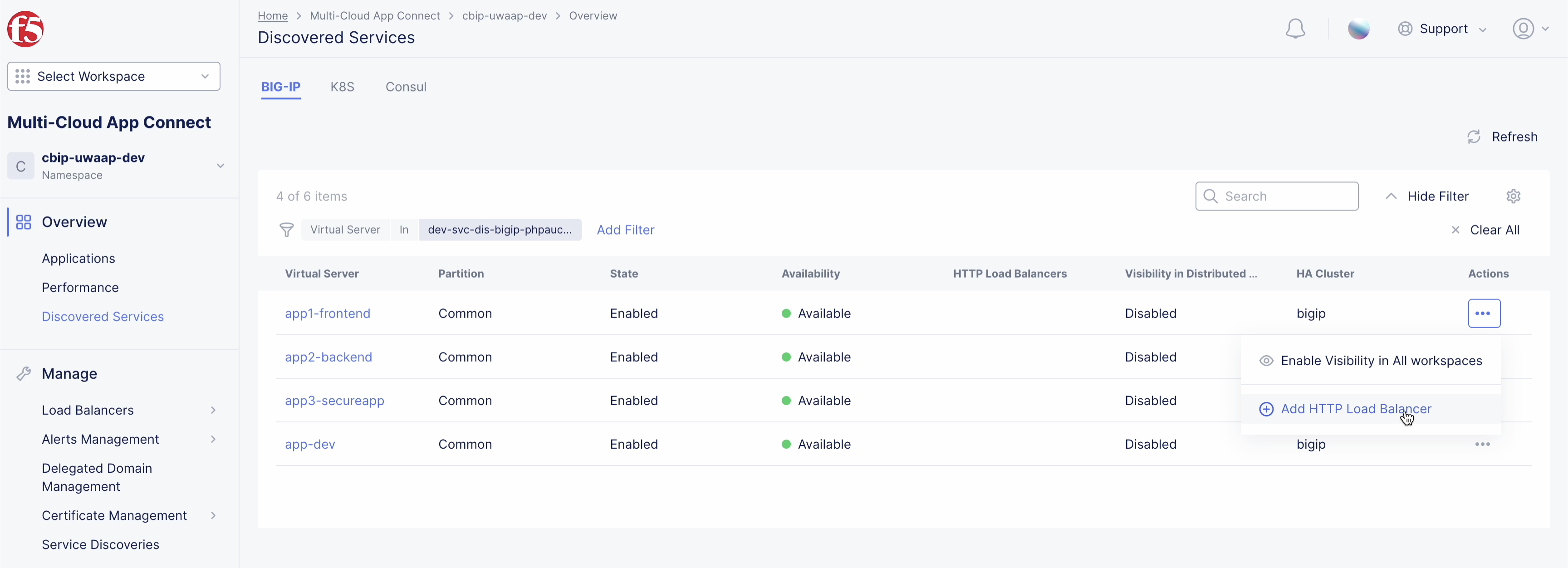

• Navigate to Multi Cloud App Connect > Discovered Services.

• Click on ... (ellipsis) icon in the Actions column of the discovered service you want to advertise.

• Select Add HTTP Load Balancer.

• Enter a name for the load balancer.

• Enter a domain name.

• In the Load balancer Type drop-down menu, select HTTPS with Automatic Certificate.

• In the Root CA Certificate of Origin Server drop-down menu, select Skip Verification.

• Click Save and Exit.

Note: This gives a quick way to advertise the discovered objects. The Load balancer and Origin pool objects for the service are automatically created and can be managed directly by navigating to Multi Cloud App Connect > Manage > Load Balancers > HTTP Load Balancers.

---

Enable Visibility in All Workspaces

The “Enable Visibility in All Workspace” action promotes the discovered app as a BIG-IP Virtual Server object in all Distributed cloud workspaces. This object provides a security dashboard similar to existing Distributed Cloud load balancer dashboards to enhance visibility into the security of the discovered app. In the current release, it supports enabling API visibility in the Web App & API Protection workspace.

Note: This option can be used for the use case where the client directly connects to the app on BIG-IP (CE is not inline on the data path) and the access logs for the visibility-enabled virtual server are streamed to the Global Controller via the CE.

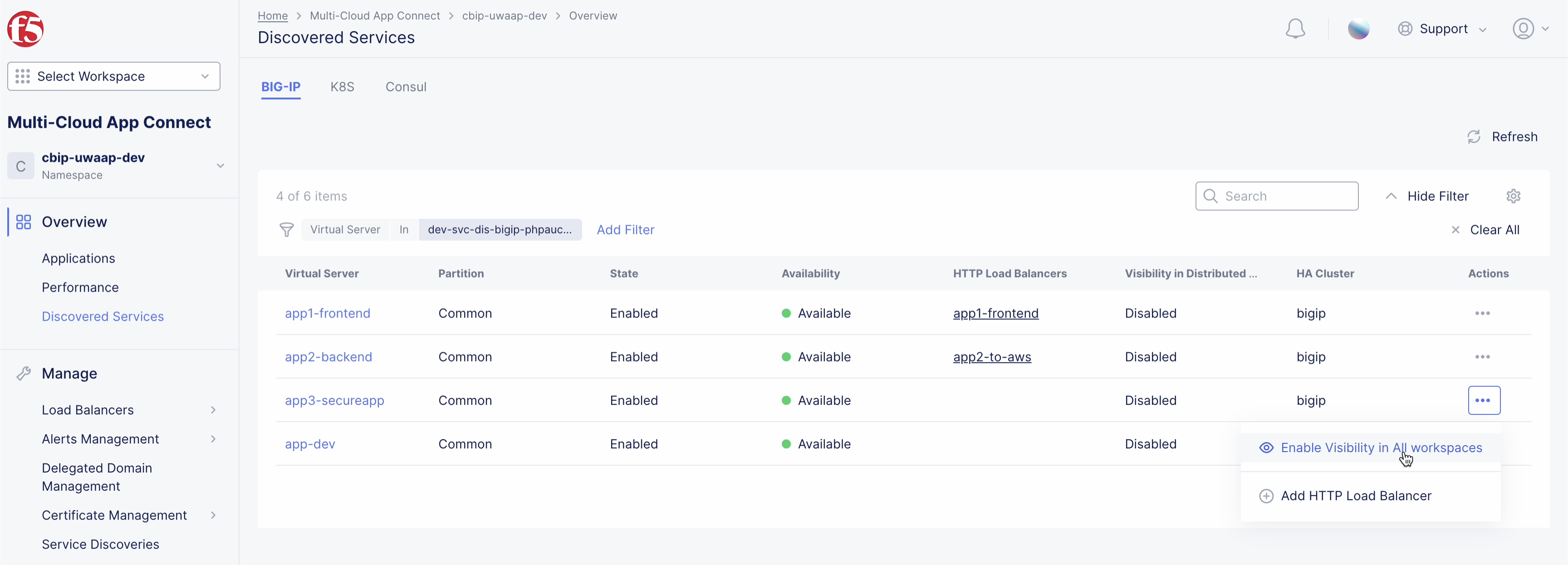

Follow the below steps to enable visibility for a discovered app:

• Navigate to Multi Cloud App Connect > Discovered Services.

• Click ... (ellipsis) icon in the Actions column of the discovered service and then click Enable Visibility in All Workspace.

• Click Enable Visibility in the popup to confirm your action. A popup at the bottom of the screen shows if the action was successfully performed and the status in the Visibility in Distributed Cloud column changes to Manage in WAAP. You can click this status to redirect to the Web App & API Protection workspace and enable API discovery for the corresponding BIG-IP virtual server.

Behavior in BIG-IP HA environments

In BIG-IP High Availability (HA) setups, the visibility configuration is applied to all the devices available in the HA cluster. Network-related configurations (such as VLANs) are not automatically synchronized across devices, and therefore require the following special considerations:

• All HA devices must be reachable while enabling or disabling visibility.
  If any device is unreachable during this process, configuration changes are automatically rolled back to maintain consistency across the cluster.
• While using manual sync mode, network configurations on the standby device may not be automatically removed after disabling visibility.
  You must perform a manual sync from the active device to the standby device. If required, delete the remaining network configurations manually to maintain a clean state. This does not affect any future enable/disable visibility actions.

Therefore, it is recommended that you follow these steps before you enable or disable visibility:

• Ensure that all the BIG-IP HA devices are online and reachable.
• Ensure that the HA synchronization (either manual or auto-sync) is up to date.
• For manual sync setups, ensure that you perform a manual sync after disabling visibility.

Notes:

• In the auto-sync mode, cleanup and synchronization occur automatically.
• Any existing configurations that are detected by the system are reused during subsequent enable/disable actions.
• These behaviors are applicable while performing the Enable/Disable Visibility in All Workspaces actions from the Discovered Services screen.

---
